Trimble Infrastructure Design Suite
A unified platform where GIS, CAD and BIM data converge into a digital twin. Bridging the gap between office and field via cloud collaboration, IDS supports the project lifecycle, from modeling existing conditions to delivering machine-ready data.
From concept to constructible digital twin
Iteratively design roads, railways, bridges and tunnels that follow core alignments automatically. Parametric modeling and model dependencies ensure that when one element changes, the entire model stays coordinated.
Break down silos with Trimble Connect Innovate. All disciplines participate simultaneously in a single cloud-based canvas, providing real-time transparency into work-in-progress (WIP).
Deliver machine-ready models directly to site devices. IDS produces the precise stakeout strings, surfaces and solids required for Trimble field hardware, ensuring high-fidelity data transitions from office to field without manual costly rework.

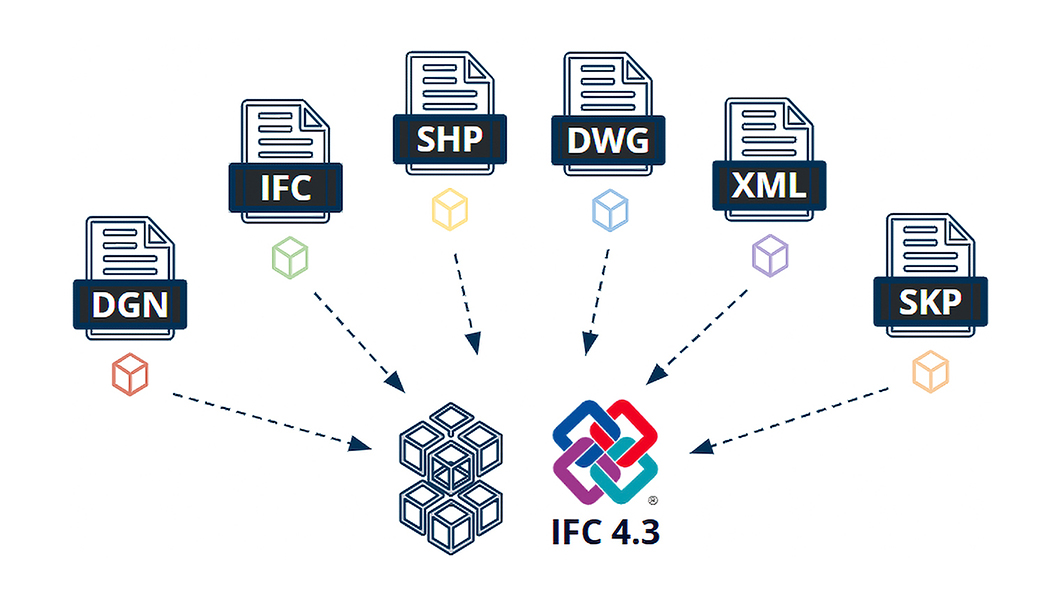

Eliminate vendor lock-in with native support for IFC 4.3. Bi-directional connectors allow you to integrate external data from Civil 3D, Tekla Structures, OpenRoads, Rhino/Grasshopper, etc., while maintaining object intelligence.
Find the right plan for you
Infrastructure Design Suite
Establish a validated ground truth and coordinate multidisciplinary teams via Trimble Quadri and Trimble Connect.
What’s included:
Infrastructure Design Suite Pro
Advanced parametric modeling for roads, railways, utilities and structures via Novapoint.
Everything in IDS, plus:
Infrastructure Design Suite Premium
Specialized tools for complex 3D road signage and national safety standards.
Everything in IDS Pro, plus:
What are Trimble customers saying?
The purpose of the Quadri model is to be an assembled discipline collaboration model, in which the various disciplines simultaneously participate in the design.
Trusted by industry leaders
Today, and every day since we were founded in 1978, the world's most trusted companies turn to Trimble for a better way to work to be more efficient, productive and profitable.
Smarter route alternatives with Trimble Quantm
Smarter route alternatives with Trimble Quantm

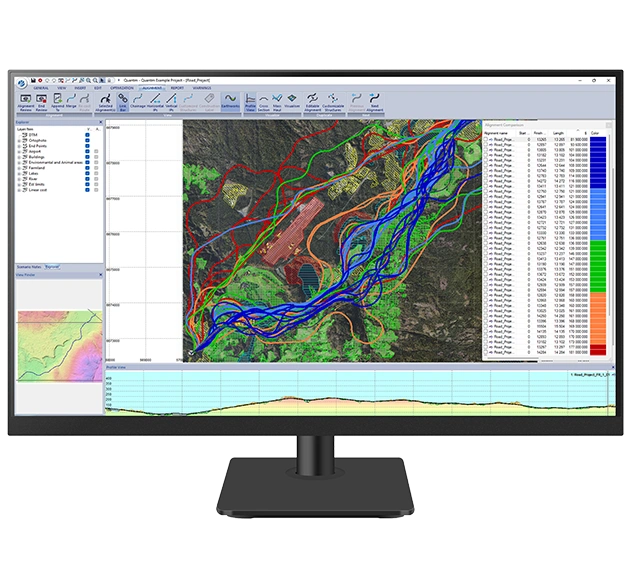

Use Trimble Quantm to evaluate thousands of route alternatives. By integrating environmental, legal and construction costs, Quantm identifies the most sustainable and cost-effective corridor, reducing planning time and project risk.
Faster feasibility: Test "what-if" road and rail alignments in days using path-finding algorithms.
Environmental compliance: Automatically avoid restricted zones and respect community constraints from the start.
Cost-driven decisions: Get instant earthwork and cost estimates to align budgets before detailed design.
Ecosystem integration: A standalone solution that integrates into the Trimble ecosystem for early-phase optimization.
Customer support & learning
Visit Trimble Quadri help
Visit Trimble Novapoint help
Visit Trimble Connect help
Frequently asked questions
Can I still use my existing design tools like Civil 3D?
Yes. Infrastructure Design Suite features bidirectional desktop connectors that enable feature-to-feature workflows with external applications such as Civil 3D, OpenRoads and Tekla Structures.
How does Infrastructure Design Suite improve office-to-field workflows?
Infrastructure Design Suite produces constructible models that can be delivered directly to site devices via WorksManager or through open formats like IFC 4.3 and LandXML.
What is the benefit of an object-based model over file sharing?
Unlike static file sharing, Trimble Infrastructure Design Suite integrates data into a single, live and object-based environment. This eliminates productivity losses and version errors caused by disconnected silos, enabling real-time collaboration and iterative design within a common coordinate system.
Which industry data formats does the suite support?
The Trimble Infrastructure Design Suite is built on an OpenBIM philosophy. It natively supports IFC 4.3, as well as LandXML, DWG, DGN and TTM, ensuring you can meet strict digital delivery requirements and exchange data across the project lifecycle.
Where is my project data hosted and is it secure?
Your data is hosted on the scalable Quadri Gen 5 cloud (powered by Microsoft Azure). To meet local compliance and security needs, we offer regional data residency in several locations, including the EU, US and UK.
